A compact 1200w RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard. The dimmer is connected in-line before the first light fitting, to enable dimming of up to 1200w/1000va of leading edge dimmable loads. Controlled from any Rako RAKOM RF device, for example the RCP07 or RCM070 push button RF wallplates.

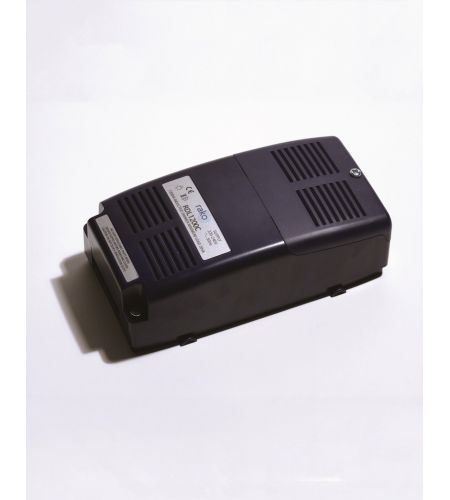

Designed to fit in a ceiling void using an access panel or an electrical cupboard, the RDL1200C inductive dimmer can control up to 1200 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure. The robust microprocessor design combines smooth reliable dimming with dynamic safety features such as auto-resetting over current, temperature shutdown and voltage surge protection. Programmed using either an RCP07 or RCM070 RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus four preset scene levels in non volatile memory. The RDL1200C dimmer can be controlled from any Rako transmitter such as RCP/RCM wallplates, RAH hand helds, MB1 timeclocks and forms the foundation of any Rako scene-set system.
