The HDCCTV range of AHD 720P CCTV kits are the best value kits in the UK, they offer Professional Quality cameras and DVRs at an unbeatable package price.
This 8 camera system is easy to fit and includes an AHD OAHD-D8 High Resolution DVR, which will record in 720P resolution in Real Time. The DVR is equipped with HDMI, VGA and BNC outputs for easy connection to a TV or Monitor.
The cameras provided with the system are the AHD OAHD-V Vandal Resistant Dome cameras, offering 720P resolution quality images. They are designed for wall or ceiling mounting indoors and are very small making them unobtrusive and ideal for use in a variety of premises.
Features:

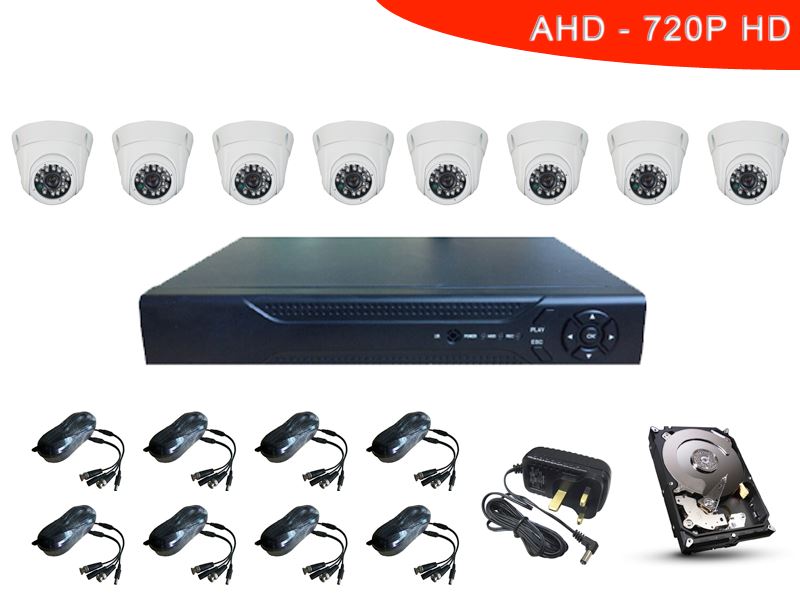

● Complete 8 camera CCTV system
● 8 Weatherproof HD 720P Vandal Resistant Dome cameras with 20m IR Night Vision and 78° Wide Angle Lens
● 8 camera HD 720P DVR with 1TB Recording Capacity (for up to 30 days recording) and Remote Access via Smartphone, Tablet, PC or Mac
● 20m of cable per camera
● DVR is equipped with HDMI, VGA and BNC outputs for easy connection to a compatible Tv or Monitor
● Designed for easy DIY installation
The OAHD-D8 8 channel DVR is the latest from y3k and offers High Definition 720P real time recording. The DVR presents great value for money and has both VGA and HDMI outputs.
The model has multiple alarm record modes, supporting HDD and video input alarm management. Backing up files is quick and easy with the built-in USB port.
The OAHD-D8 provides recording in HD 720P HD 960H and D1 in real time and supports PTZ camera operation through RS-485. For easy control and setup, the DVR features an On Screen Display (GUI) and can be controlled by the front panel , Remote Control or Mouse.
| Brand: |
HDCCTV |
| Model Number: |
OAHD-D8 |
| Video Compression: |
H.264 |
| Video System: |
NTSC / PAL |
| Video Input / Output: |
4 CH Input, 1 BNC, 1 VGA,
1 HDMI |
| Spot Output: |
No |
| Audio Input / Output: |
2 CH Input, 1 CH Output (RCA) |
| Display Resolution: |
PAL: 1024x768 @ 25fps
NTSC: 1024x768 @ 30fps |
| Display Feature: |
Single, Quad, S.E.Q |
| Recording Resolution: |
PAL: 720x576 (D1), 960x576 (960H), 1280x720
NTSC: 720x576 (D1), 960x576 (960H), 1280x720 |
| Recording Speed: |
PAL: D1 Mode / 960H Mode / 720P Mode 25fps
NTSC: D1 Mode / 960H Mode / 720P Mode: 30fps |
| Recording Mode: |
Continuous / Manual / Motion Detection |
| Playback Channel: |
1 / 4 Ch |
| Playback Speed: |
PAL: D1 Mode / 960H Mode / 720P Mode: 25fps
NTSC: D1 Mode / 960H Mode / 720P Mode: 30fps |
| DVD-RW: |
No |
| Sensor & Alarm I/O: |
No |
| IR Extender Port: |
No |
| Network: |
Lan, DHCP, Dynamic IP & DDNS |
| HDD Interface: |
1 SATA HDD, up to 4TB |
| Multiplex Operation: |
Live Display, Record, Playback, Backup and Network |
| USB: |
2 x USB (For mouse and backup / upgrade) |
| PTZ Control: |
Built-in RS485, supports Pelco-P & Pelco-D |
| Mobile Surveillance: |
TBC |
| CMS Software: |
TBC |
| Web Browser: |
Internet Explorer |
| VGA: |
1920x1080, 1280x720, 1440x900, 1280x1024, 1024x768 |
| HDMI: |
1920x1080, 1280x720, 1440x900, 1280x1024, 1024x788 |
| Power Supply: |
TBC |
| Fan: |
Yes |
| On / Off Switch: |
No |
| Remote Control: |
Yes |
| Rack Mount Size in (U): |
1 |
| Housing Dimension (WxHxD): |
TBC |
The OAHD-V is a HD 720P Dome camera with 20 metres of Infrared Night Vision. The camera features a 78° wide-angle lens to capture more without the need to adjust the camera. The Dome is ideal for indoor or outdoor use (IP65 Rated) and has a cable managed and compact design.
The range of AHD cameras from Y3K are designed to offer crystal clear images and amazing value for money, this is achieved by removing high-end features not needed in everyday applications. The result is a range of cameras offering high resolution HD 720P image quality at an affordable price.
Features:
● 3.6mm (78°) Lens
● 20m IR Night Vision
● Vandal Resistant
● Weatherproof
| Brand: |
HDCCTV |
| Model Number: |
OAHD-V |
| Style: |
Mini-Dome Camera |
| Weather Resistant: |
Yes (IP65 Rated) |
| Vandal Resistant: |
Yes |
| Mounting Type: |
Wall or Ceiling |
| Dimensions (WHD in mm): |
96x96x65 |
| Weight (Kg): |
0.30 |
| Warranty: |
1 Year Warranty |
| Sensor Type: |
1/3" Colour CMOS |
| DSP Type: |
AHD Digital DSP |
| DSP Functions: |
Automatic White Balance
Backlight Compensation
Digital Wide Dynamic |
| Resolution: |
HD 720P |
| Minimum Illumination: |
0.1 Lux (0 Lux IR On) |
| Night Vision: |
20m IR Night Vision |
| Lens Type: |
Fixed |
| Lens Size: |
3.6mm |
| Viewing Angle: |
78° |
| Operating Voltage: |
12V DC |
| Suggested Power Supply: |
12V DC 1250mA |
| Video Output: |
BNC Socket |
| Audio Output: |
No |
| Power Input: |
DC Socket |
| RS485 Control: |
No |
