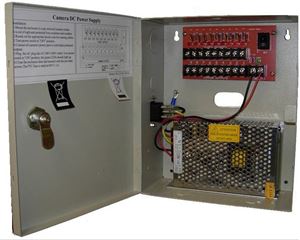

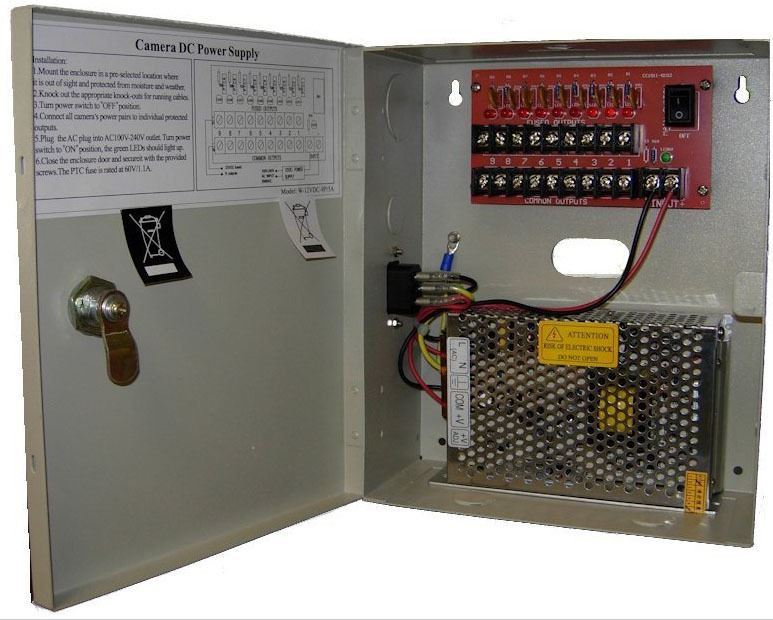

A professional wall mounted CCTV Boxed Power supply offering the installer/user up to 9 outputs of 1.6 Amp PTC fuses and provide the user with a very stable and fully regulated 12Volt DC supply complete with surge protected outputs.
The power supply input is via an IEC 320 (kettle) lead.
The metal case has pre-formed grommet holes for input and output cables and is supplied with fixing screws and rubber grommets.
Ideal for installations or a wide range of applications including Intruder, Fire, CCTV, Access Control and General Purpose use.
Description
CCTV boxed Power supply with 9 x 1.6A PTC fused and surge protected outputs
Type
Switch Mode
Input Voltage
230VAC - 50 / 60 Hz.
Output power
12VDC – 10.0 A
Rated Power
60W
Number of Output
9 PTC fused outputs rated at 1.6A Max each
Input Type
IEC 3 PIN (Kettle Lead) input
LED’S
Individual LED for each output
Protection
PTC protected power limited outputs
Safety Standards
CE, RoHS, WEEE
Dimensions
300 X 330 X 85MM
Surge Suppression, Voltage Adjustment, Power On / Off Switch
