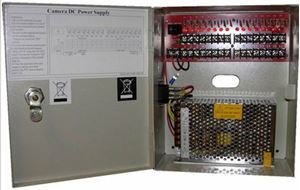

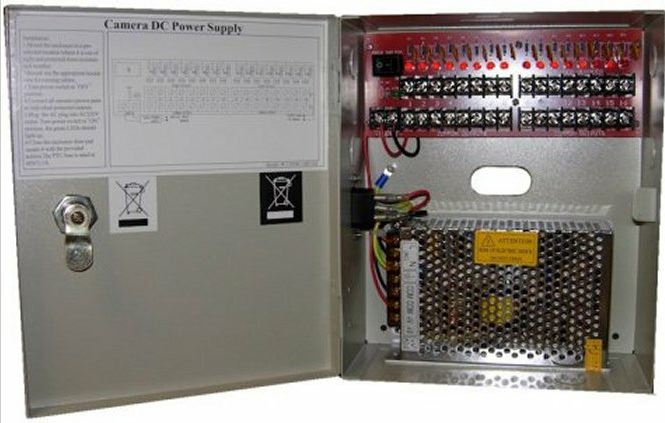

A professional wall mounted CCTV Boxed Power supply offering the installer/user up to 18 outputs of 1.1Amp PTC fuses and provide the user with a very stable and fully regulated 12Volt DC supply complete with surge protected outputs.
The power supply input is via an IEC 320 (kettle) lead, (Supplied)
The metal case has pre-formed grommet holes for input and output cables and is supplied with fixing screws and rubber grommets.
Ideal for installations or a wide range of applications including Intruder, Fire, CCTV, Access Control and General Purpose use.
Description
CCTV boxed Power supply with 18 x 0.55A PTC fused and surge protected outputs (1.1A Max)
Type
Switch Mode
Input Voltage
110/220V AC - 50 / 60 Hz.
Output power
12 VDC - 10.0A
Rated Power
120W
Number of Output
18 PTC fused outputs rated at 1.1A Max each
Input Type
IEC 3 PIN (Kettle Lead) input
LED’S
Individual LED for each output
Protection
PTC protected power limited outputs
Safety Standards
CE, RoHS, WEEE
Dimensions
280 X 230 X 90MM
Surge Suppression, Voltage Adjustment, Power On / Off Switch
